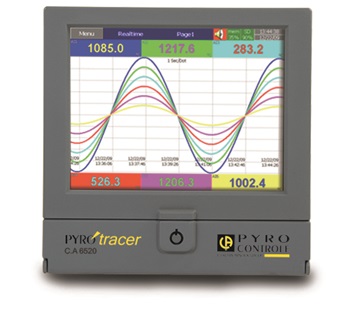

Focus on the Pyrotracer C.A 6520 datalogger
Paperless recorder on up to 72 channels
This touch-sensitive datalogger covers a wide range of applications.
Strengths
- Number of universal inputs: up to 24 channels and up to 72 channels with extension
- Compact size
- 5.6" touch display
- Extra-bright screen
- Sanctuarized data
- Sampling interval of 100 ms per channel
- PLUG & PLAY Input/Output modules
- 100 Hz pulse input
- Web server
- Modular
Accessibility of the data via the WEB with WEBSERVER
The data in the recorder can be viewed from anywhere in the world: all you need is a Web connection.
For this, the recorder must be connected to the Internet with an IP address supplied by the Internet service provider.
Customized screens
With the Panel PC Studio software, users can recreate their applications. This software enables users to have customized displays linked to their applications or process.
Configurable as a simple stand-alone unit for unique data acquisition applications, the C.A 6520 can be set to Master communication mode for supervision of an entire installation. With this configuration, you can thus take advantage of the recorder's performance features (secure data storage, supervision on touch screen, data viewable remotely, etc.).
Writing messages on the curves
On-screen messages are particularly useful, as they allow you to highlight important events.
Operational in History mode.
Various display modes
Digital Views screen
Bargraph Views screen
Curve Views screen
Other important functions
Analog inputs: flexible sampling rate
Each analogue input can be set up with a specific sampling interval, such as 100 ms, 1,2,5,10,20,50 sec/Point and 1,2 Min/Point.
In this way, users enjoy significant flexibility for tracking their process.
Fast input
The digital inputs may either be DIs with standard High and Low logic levels or they may configured as frequency inputs (100 Hz).
System clock synchronization
The recorder's system clock can be synchronized via Ethernet and adapts automatically to summer/winter time changes
Increased security in password configuration
The password can be configured as normal or in CFR - 21 mode.
The increased security in normal mode uses a password.
FDA 21 CFR PART 11
Security in 21 CFR mode uses 9 password levels.
Batch management
With this function, the recorded data can be stored in batches. It will then be easy for the production and quality teams to process the data.
