Avoid any risk of overheating on your rotating machines
Ideal for protection and monitoring of rotating machinery.
This sensor can be used to check the temperatures of the bearings on industrial rotating machines. It can be installed at the heart of pumps, motors, gear motors, grinding mills, centrifuges, electrical generator sets, turbines and alternators. In this way, it prevents any overheating due to poor lubrication, which could lead to damage and halt the process!

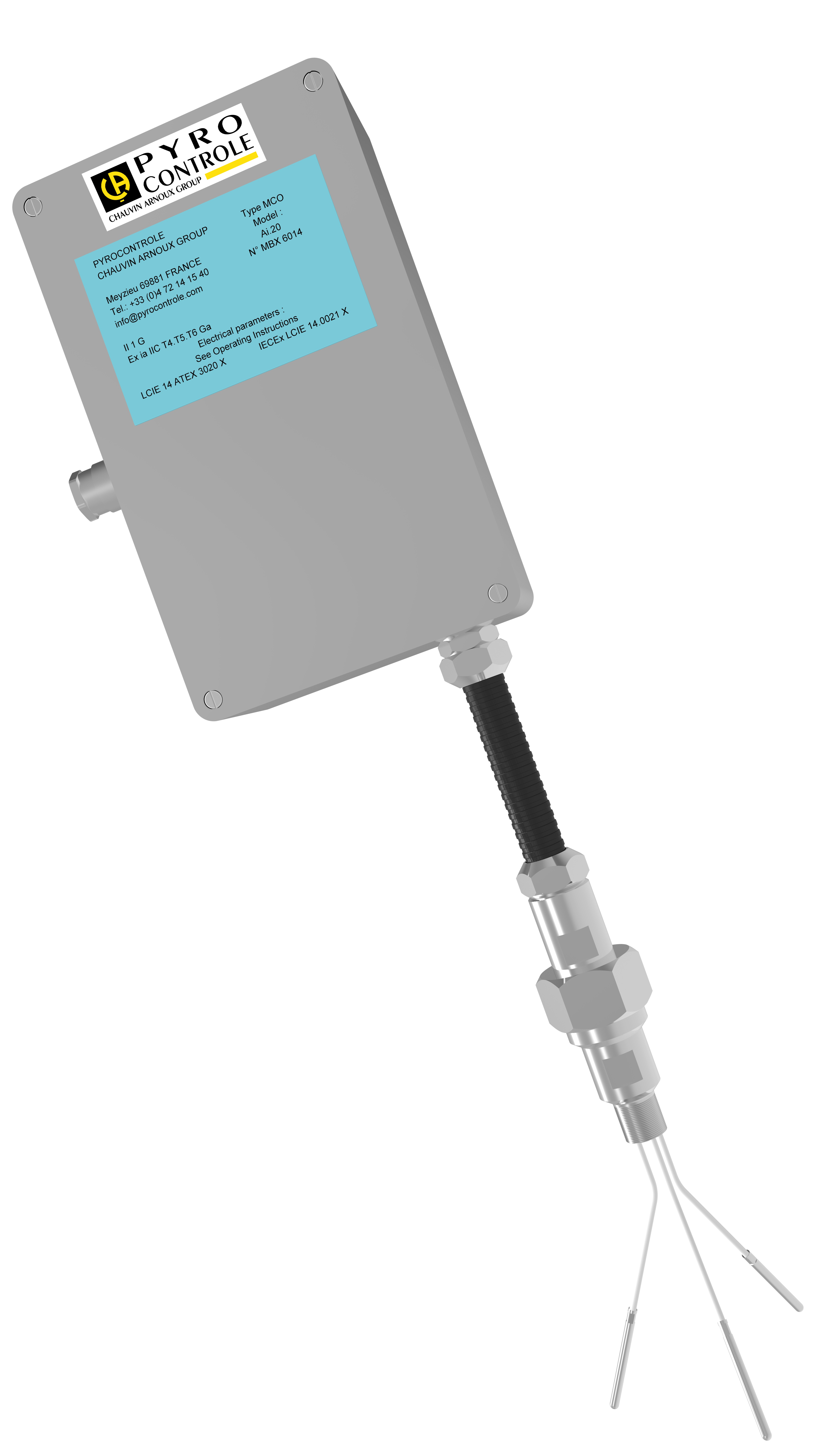

Equipped with a connection unit fixed to the frame of the rotating machine, this oil-tight multipoint sensor can be used to measure bearing temperatures inside the machines.
Technical specifications
Operating temperature: up to 200°C
Response time < 3s for Pt100, diameter 3 mm
2, 3 or 4-conductor extension cable with stainless-steel or teflon sheath (with shielding braid for teflon)
Pt100 or Pt1000 measuring element, assembly designed to withstand strong vibrations
Measurement accuracy Class A or Class B
Oil-tight up to 20 bar
Connection unit certification : ATEX ia or d, IECEx
Connection: direct or via a temperature transmitter
316L stainless-steel measuring tube, diameter 3, 4.5 or 6 mm
Transmitter clippable on DIN rail
Input: Pt100 or Pt1000 / Output: 4...20mA Hart or Fieldbus Foundation or Profibus DP
