S41-450

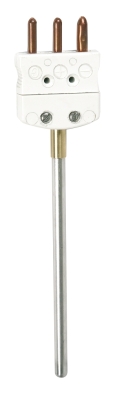

Standard Pt100Ω sensor, class A according to IEC 751 in stainless-steel tube
Connection via JAEGER connector mounting
Product presentation
Standard Pt100Ω sensor, class A according to IEC 751 in stainless-steel tube
- withstand 450°C
-connection via STANDARD connector
-mounting: option for sealed compression fitting on tube
Example of description of coded models
S44-450 3 1X3 500 STD3B:S44
STD3B : model
-450 : 450°C withstand
3 : Tube diameter (mm)
1x3 : 1x3-wire mounting
500 : Tube length (mm)large choice of customizable models
Custom definition: Please contact us
Contact a sales representative
Need information about our solutions? Our experts are available to advise you and assist you with your project. Contact a sales representative now for a detailed presentation and a quote tailored to your needs.
References and accessories
To fully meet your expectations, a range of accessories is available that is compatible with your equipment. Feel free to add them to your quote request to obtain a complete and tailored solution.
PT100 SENSOR S44-450 D3 1X3 50 STD3B
L334412-003
PT100 SENSOR S44-450 D3 1X3 100 STD3B
L334412-006
PT100 SENSOR S44-450 D3 1X3 150 STD3B
L334412-007
PT100 SENSOR S44-450 D3 1X3 200 STD3B
L334412-008
PT100 SENSOR S44-450 D3 1X3 300 STD3B
L334412-010
PT100 SENSOR S44-450 D3 1X3 500 STD3B
L334412-014
PT100 SENSOR S44-450 D6 1X3 50 STD3B
L334414-003
PT100 SENSOR S44-450 D6 1X3 100 STD3B
L334414-006
PT100 SENSOR S44-450 D6 1X3 150 STD3B
L334414-007
PT100 SENSOR S44-450 D6 1X3 200 STD3B
L334414-008
