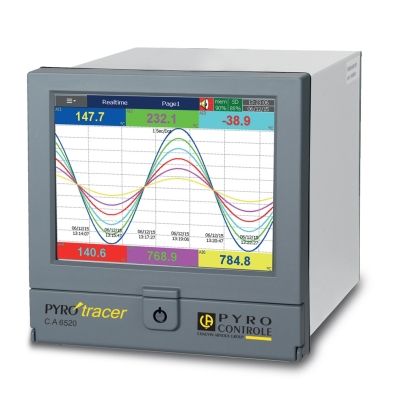

C.A 6520 paperless recorder with touch screen

High power !
Channels: 3 to 24 universal inputs 5.6" TFT touch screen with 65,000 colours Resolution: 640x480 20 display pages (6 traces per page) Secure data recording (encryption) 5 alarms per channel Isolation between channels: 1,500 Vac Protection: IP65 front panel & IP20 rear panel Panel-mounting or portable version available as an option Standards: CE, cULus & RoHS Dimensions: 144 x 144 x 189 mm Depth when mounted: 171 mm Sampling interval; 100 msec per channel Internal data storage: 256 MB Ethernet communication as a standard feature, (Ethernet + RS232/485/422 available as an option) External data storage: SD slot & USB (x2) Calibration certificate (option) Display modes: vertical or horizontal curves, histogram mode, display, history mode, alarms log, etc.Level-1 Advanced Functions:
- Math functions, pulse counters, totalizers: 40 - Modbus master - External channels: 48 - Batch management - FDA 21CFR part 11: Audit Trail - PYRODAQ Real Time Viewer software Level-2 Advanced Functions:
- Customized screens with Panel Studio software Software
- OBSERVER (standard): processing software on PC. Configuration of the recorder, display of histories, recording project management, export into Excel - PYRODAQ: real-time display software: allows you to centralize the data from several recorders on a single PC via Ethernet or a serial link, recording on PC, transmission of email for alarms, link to OBSERVER. - PANEL STUDIO: software for creating customized screens, creation of block diagrams of installations, access to a library of ready-to-use objects and images. - Multilingual: 19 languages integrated

C.A 6520: 3 to 24 channels, 48 external channels, 5.6" TFT touch screen
