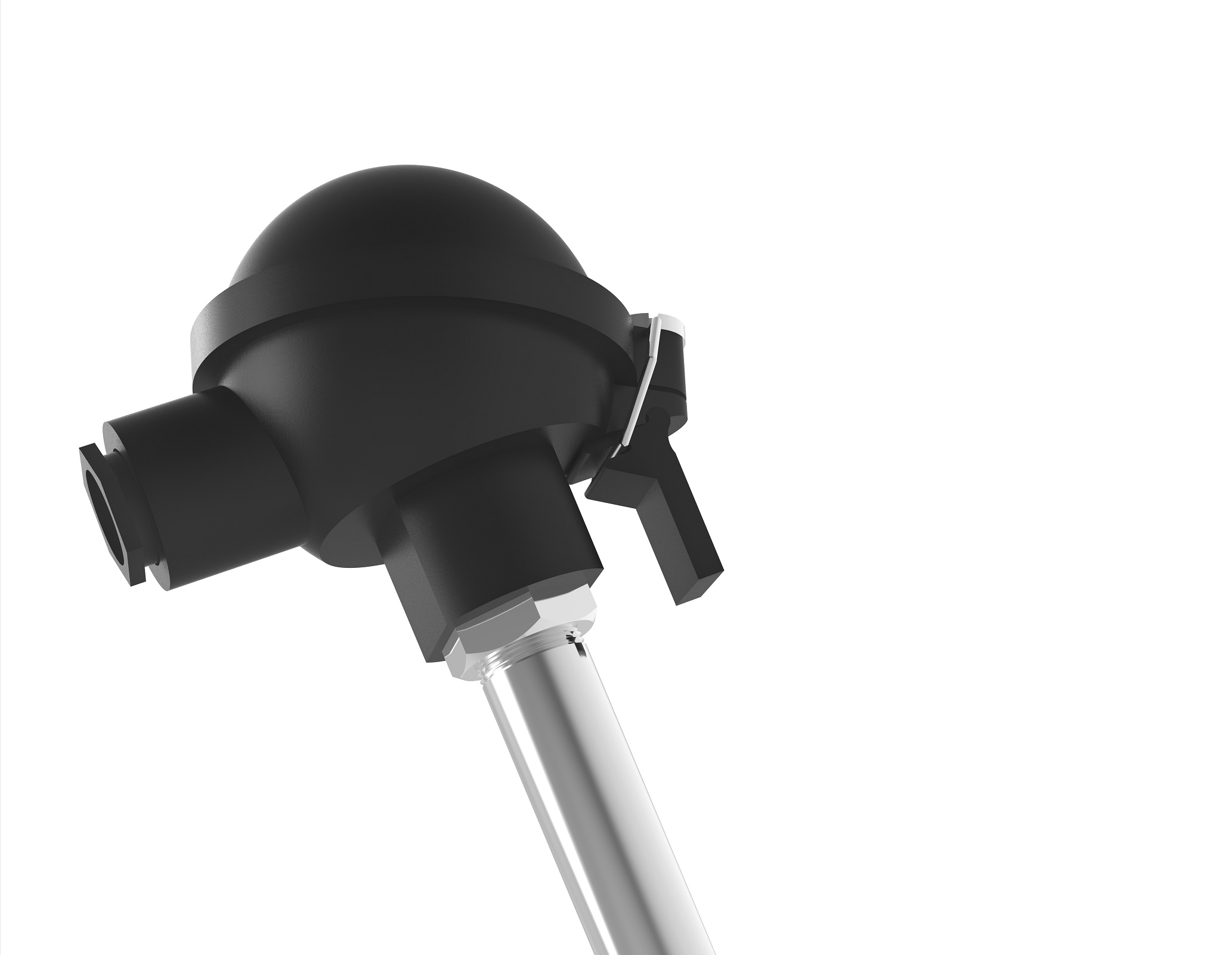

S90-200 temperature sensor
Standard temperature sensor with Pt100 probe in stainless-steel tube with output via connecting head.
-40°C to +200°C measurement range, fastening with threaded connection under head, accuracy class A as per IEC 60751.
• mounting: 2 wires, 3 wires or 4 wires
• simple Pt100 probe or duplex Pt100 probe
• length and diameter of stainless-steel tube
• connection threading: G1/2 / G1/4 / 1/2 NPT/ 3/4 NPT /etc.
• various types of connecting heads possible:
. shape
. material: light alloy / stainless steel / plastic
. with or without protective epoxy paint
. IP54 or IP65
. with or without transmitter integrated in the head
